Machining

American Know-How + Swiss Precision: Perfect every time

Efficiency, high quality, reliability, is the Toledo Screw way. We’re deeply invested in Swiss machining, allowing us to perform more precision work in fewer setups, reduce non‑productive time, and streamline workflows to increase throughput while removing time and cost from every part. Chances are you’re sourcing precision parts at a job shop, or from your own shop floor, where one, maybe two of these critical deliverables can be achieved. Toledo Screw routinely delivers all three. You get it faster and made right, each and every time.

One (1) Tsugami BW329Z 9-Axis Swiss Machine

High-performance, 32 mm, 9-axis Swiss-type CNC automatic lathe designed for rapid, high-precision machining of highly complex parts in a single setup. Renowned for its split-slide design and ability to maximize productivity through multitasking, single setup production of complex, high precision parts:

Bar capacity: 1.26″ (32 mm)
Max. Turning Diameter: 1.26″ (32 mm)
Max. Turning Length: 12.59″ (320 mm) when operating in Swiss Mode (with the guide bushing).
Main Spindle: 8,000 RPM
Sub- Spindle: 8,000 RPM
Total Tool Positions: 30 standard / up to 38 maximum
Live Tool Positions: 11 standard / up to 26 maximum

Three (3) Tsugami BH38 11-Axis Swiss Machines

High performance 11-Axis Swiss-type CNC automatic lathes with combination gang tooling and indexing live-tool turret combining the speed of a Swiss turn and the heavy milling/drilling flexibility of a traditional turning center. End result? Highly complex, tight-tolerance part machining in a single setup:

Bar Capacity: Up to 1.5” (38 mm)
Max. Turning Diameter: 1.496” (38 mm)
Max. Turning Length: 9.84” (250 mm)
Main Spindle: 15HP, up to 11,000 rpm •Sub-Spindle: 7.3 HP, up to 7,000 rpm
Tooling Configuration: 12-station turret (with live rotary capability), with modular front/rear gang tool posts

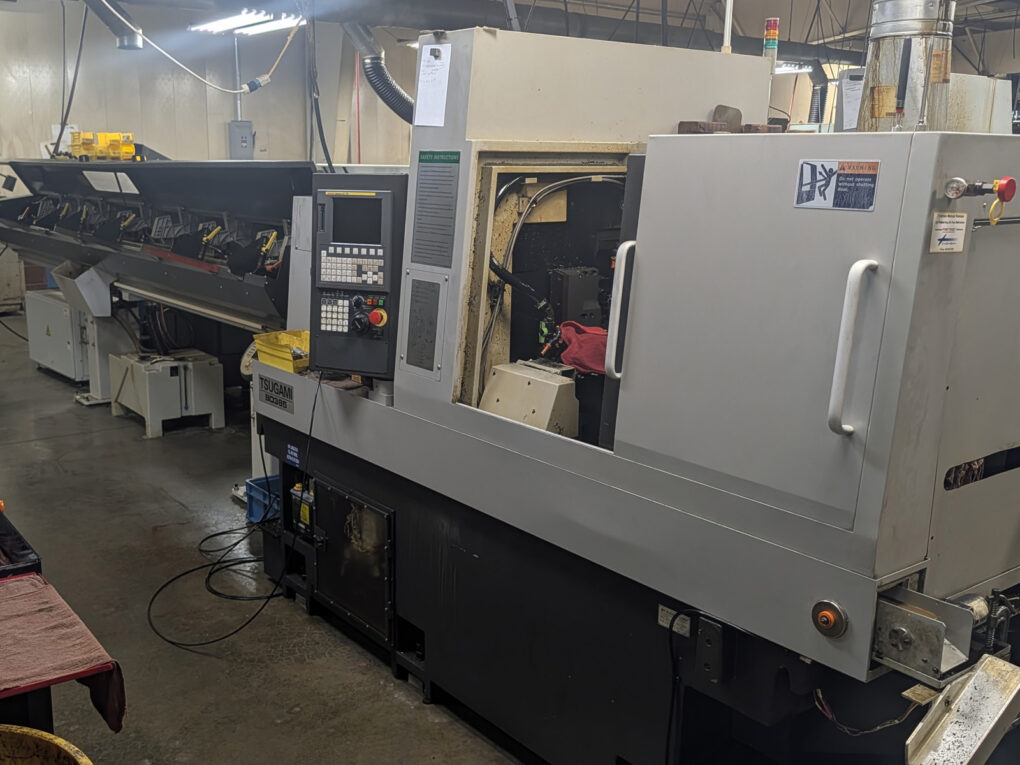

One (1) Tsugami BO385 5-Axis Swiss Machine

High performance 5-Axis Swiss-type CNC automatic lathe with combination gang tooling and indexing live-tool turret combining the speed of a Swiss turn and the heavy milling/drilling flexibility of a traditional turning center. Ideal for the economic production of a wide range of part types, all machined in a single setup:

Bar Capacity: Up to 1.5” (38 mm)
Max. Turning Diameter: 1.496” (38 mm)
Max. Turning Length: 9.84” (250 mm)
Main Spindle: 15HP, up to 11,000 rpm
Sub-Spindle: 7.3 HP, up to 7,000 rpm
Simplified tooling configuration for fast cycle times on simpler parts. Very easy to program.
Total tool storage capacity: 23

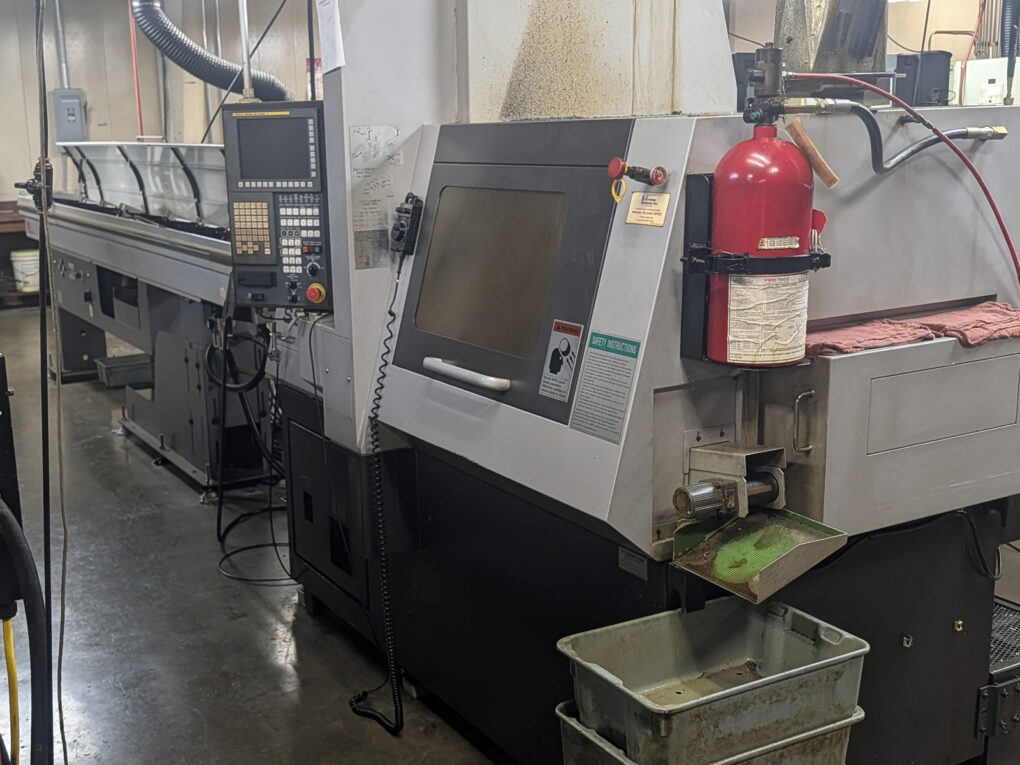

One (1) Tsugami SS32 5-Axis Swiss Machine

A very fast CNC 5-axis machine with a multitude of live tools built in, including milling, thus delivering exceptional versatility:

Equipped with C axis/Y Axis Live Tools Sub-Spindle
Max. Turning / Cutting Length: 9″ (228 mm)
Bar Capacity: 1.250″ (31.75 mm)
Main Spindle Speed: 10,000 RPM
Sub-Spindle Speed: 10,000 RPM
Live Milling Max. RPM: 5,000 RPM
Tool Positions: 24

Six (6) Brown & Sharpe CNC Ultramatic Screw Machines

Accommodates multiple materials, offering adaptability across different production needs. Long renowned for their flexibility for both small and large productions.

Bar Capacity: Up to 1.5″ (38 mm)
Converted to full cnc control; no mechanical levers or switches are used. The turrets rotate under cnc control.
Capable of putting three tools in the cut at one time. Full cnc turret and rpm control.

Brown & Sharpe CNC Ultramatic Screw Machines

TOOLROOM

One (1) FANUC ROBOCUT EDM Machine

In-house production of tooling on this compact, high-precision and highly reliable wire-cut EDM saves days, even weeks on typical development and production time for tooling for each and every project.
